Product : Inverter Luminous

Long Backup UPS

Features
  • Micro-controller based design
  • Selectable battery option
  • Runs single PC up to 15.0 hrs with 24V 150 AH battery
  • Charges battery very fast
  • Pre-loaded battery management software
  • Regulated output voltage window during regulated UPS mode
  • Regulated battery charging from 120V to 300V
  • Automatic holiday mode preserves battery charge(away from home for long time)
  • Audio alarms on : mains fail, charger blown, battery low, no load shutdown
  • Visual indications on : mains on, UPS on, smart charge, overload / short circuit trip, charger fuse blown, battery low, no load shutdown

TECHNICAL SPECIFICATIONS

RATING 600VA 800VA 1400VA
Regulated UPS Mode
Under voltage 180+/-5V
Over voltage 265+/-5V
Unregulated UPS Mode
Under voltage 100+/-10V
Over voltage 300+/-10V
BATTERY Type 120AH - 150AH
Lead Acid Type
Number 1 1 2

RANGE AVAILABLE


600VA

800VA

1400VA

FEATURES OF LUMINOUS INVERTERS

REGENERATIVE ENERGY CYCLING - TECHNOLOGY
  • Advanced Energy Flow Management for lowest electricity consumption.
  • Reduced Component-Stress for more reliability & longer service life.
  • Harmonics Compensated Wave shape for higher appliance life.
SMARTCHARGE-TECHNOLOGY
  • Charges batteries two times faster.
  • Advanced Battery Management: enhances battery life by up to 70%.
  • Negligible battery water loss.
  • Intelligent continuous charging profile adjustment.
OTHER UNIQUE FEATURES OF LUMINOUS INVERTER
  • Electronic overload/Short-circuit protection.
  • Battery deep discharge protection.
  • Battery undercharge/overcharge protection.
  • Battery reverse polarity protection.
  • Battery charging even at sustained Mains Low voltage up to 160V.

SPECIFICATION

RATING 600VA 800VA 1400VA 2000VA
Frequency Same as input
INVERTER MODE 50HZ +/-2%
OUTPUT VOLTAGE SAME AS INPUT VOLTAGE
INVERTER MODE 220V AC NOMINAL
OUTPUT WAVE FORM QUASI SINE WAVE
MAXIMUM CAPACITY
INVERTER MODE 600VA 800VA 1400VA 2000VA
MAINS MODE 2.5KVA 2.5KVA 2.5KVA 2.5KVA
DC INPUT 12 V 12 V 24V 48V
CHARGING CURRENT 5.6 Amp 7.8 Amp 8.9 Amp 10Amp
CHANGEOVER TIME 70 ms
ENVIRONMENT
OPERATING TEMP 0 TO 40 deg C
STORAGE TEMP 0 TO 45 deg C
HUMIDITY 0 TO 95% (NON CONDENSING)
INDICATIONS Mains ON, Inv. ON, Battery charging, Battery
  low trip, Over load trip, Battery & load
level bar graph
PROTECTIONS Electronic over load/short circuit protection,
Battery deep discharge protection, Battery
Reverse polarity protection,Battery over/under
Charge protection, MCB at out put
BATTERY CHARGING 140V AC TO 270V AC
VOLTAGE RANGE
DIMENSION
W x L x H IN MM 397 x 355 x 120 397 x 385 x 156 510 x 580 x 260
TROLLEY ( FEET) 1.5 x 1.5 x 1.5 2 x 2 x 2 2 x 2 x 2
NET WEIGHT(kgs.) 13 15 24 28.5

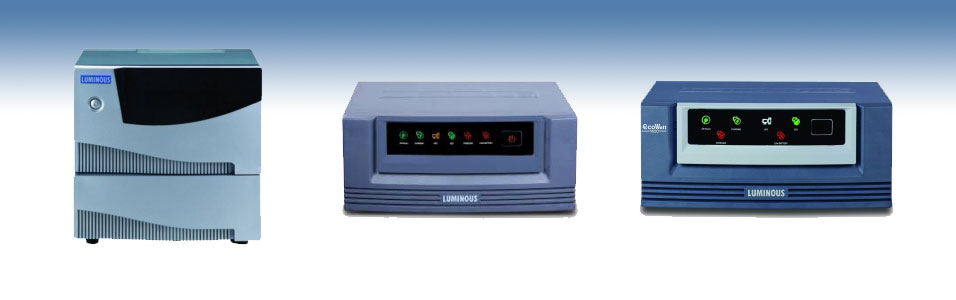

Product : Luminous
